DETAILED

Lead	Standard 12 lead
Input Circuit	Isolated: Protection against pace making and defibrillation
Input Impedance	≥50M Ω
Input Circuit Current	≤50nA
Calibrating Voltage	1mV ±3%
Skin Voltage Tolerance	± 300mV
Sensitivity	5, 10, 20mm/mV
Filter	AC: 50Hz(-20dB): EMG: 35～45Hz(-3dB)
Paper Speed	25, 50mm/s ±3%
Time Constant	≥3.2s (0, +20%)
Noise Level	≤15 µV
Frequency Response	0.05～150Hz (-3dB)
CMRR	≥100dB
Sampling Rate	1.25ms
A/D Converter	12 bit
Recording Paper	Roll paper 63mmx20m (30m)
Operation Mode	AUTO/MAN
Printer	Thermal array printer
Baseline Control	Automatic position
Rhythm Lead	Standard 12 lead
Lead Change	Automatic/Manual
External Signal	10mm/mV±5% : Single ended≥100KΩ
ECG Output	0.5V/mV ± 5%: Single ended≤100Ω
Safety Level	Class I, Type CF
Power Requirements	AC：220V, 50Hz/110V, 60Hz DC： Built in rechargeable battery Supporting 50 exams after complete charging
Package	640x400x530mm (4 sets); 240x310x370mm (1 set)
Weight	3.5Kgs



Standard Accessory

Patient Cable	1pc	Limb Electrode	4pcs/set
Power Cable	1pc	Grounding Cable	1pc
Paper Shaft	1pc	Recording Paper	1roll
Fuse	3pcs	Built in Battry	1pc
Operation Manual	1copy	Chest Electrodes	6pcs/set

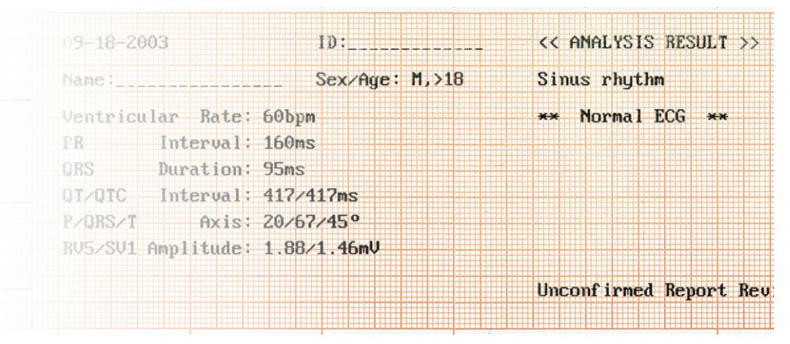

Waveform Demonstration
