Product name: Twelve Channel Interpretive ECG Machine ECG-1212
  • Packaging Details:Export Standard Carton
  • Delivery Time: within 15 days
Memory of 16 exams
6/12 Channel Printout
Rhythm Lead
Large LCD for Waveform Preview
Waveform Measurement and Interpretation
Simultaneously 12 lead Acquisition

Lead Standard 12 lead
Input Circuit Isolated: Protection against pace making and defibrillation
Input Impedance ≥50M Ω
Input Circuit Current ≤50nA
Calibrating Voltage 1mV ±3%
Skin Voltage Tolerance ± 300mV
Sensitivity 5, 10, 20mm/mV
Filter AC: 50Hz(-20dB): EMG: 35~45Hz(-3dB)
Paper Speed 25, 50mm/s ±3%
Time Constant ≥3.2s (0, +20%)
Noise Level ≤15 µV
Frequency Response 0.05~150Hz (-3dB)
Sampling Rate 1.25ms
A/D Converter 12 bit
Recording Paper Roll paper/Z fold 210mmX30m/210mmX20m
Operation Mode AUTO/MAN
Rhythm Lead Standard 12 lead
External Signal 10mm/mV±5% : Single ended≥100KΩ
ECG Output 0.5V/mV ± 5%: Single ended≤100Ω
Safety Level Class I, Type CF
Power Requirements AC:220V, 50Hz/110V, 60Hz
DC: Built in rechargeable battery
Supporting 50 exams after complete charging
Package 510x410x230mm
Weight 5.5Kgs
Printer Thermal array printer


Standard Accessory

Patient Cable 1pc Limb Electrode 4pcs/set
Power Cable 1pc Grounding Cable 1pc
Paper Shaft 1pc Recording Paper 1roll
Fuse 3pcs Built in Battry 1pc
Operation Manual 1copy

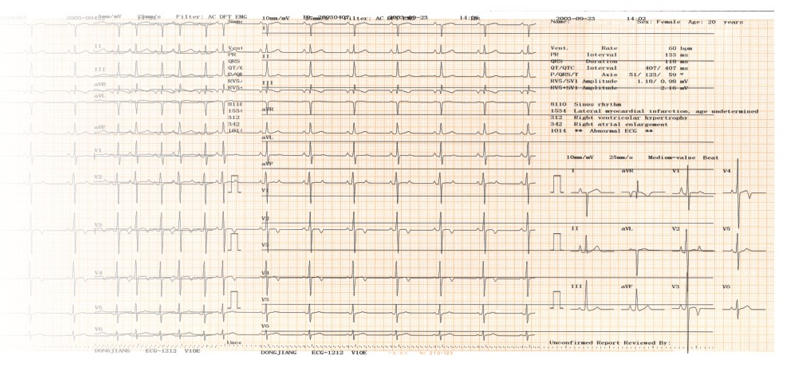

Waveform Demonstration




  • Manufacturing as well distribution of medical devices for cardiology, patient monitoring, home healthcare , rescue & surgery and veterinary
  • All kinds of products can be customized according to customer`s needs.
